Jiashan Epen Bearing Co., Ltd. is a professional manufacturer of sliding bearings, metal plastic composite bearings business, specializing in adhering to do fine, the better for our customers continue to create value concept, is committed plain bearings, new composite materials research, development, promotion and applications. Company's existing main products for metal-plastic composite series plain bearings, bimetal bearings, sliding bearings single metal series, are widely used in automotive, metallurgy, engineering machinery, construction machinery, plastics machinery, machine tool industry, water conservancy and hydropower 30 a number of areas.
EU tri-layer maintanence-free bushing have a base of lower carbon steel, onto which a porous bronze layer is sintered. PTFE mixtures are impregnated into the intersice of this bronze layer after rolling process completed. Eu has good physical & mechanical properties, also has certainly chemical properties ....
READ MORE
EX tri-layer low maintanence plain bushing have a base of lower carbon steel, onto which a porous bronze layer is sintered. Acetalcopolyer (POM) is impregnated into the intersice of this bronze layer after rolling process completed. Lubrication indents are stamped into this layer. EX has good physical & mechanical properties ....
READ MORE
EMT bi-metallic bushing is formed from steel strips with alloy lining material. The alloy lined surface can be machined oil grooves, holes, formed Indentations etc according to different application. It is suitable for high load, lower speed oscillation & rotation movement ....
READ MORE
E90 bronze wrapped bushings are made of entirely bronze CuSn8. Because of material properties, the working surface rolled with diamond Indentations (standard Indentations) or stamped oil grooves according to detailed application. And it also has good Performance of anti-corrosion caused by chemical and environments ....
READ MORE
E92 is Indentations on working surface, which substituted by Through-holes. Theses holes will allow greater capacity to collect lubricant, which build up a lubrication film at the start of movement and reduce the frication. It is suitable for high load, lower speed application like construction, Transport, and agriculture machinery ....
READ MORE
E93 bronze wrapped bushings are made of entirely special bronze alloy CuSn. Because of material properties, the working surface rolled with diamond Indentations (standard Indentations) or stamped oil grooves according to detailed application. And it also has good Performance of anti-corrosion caused by chemical and environments ....
READ MORE
E94 is deriving from E93; the difference between E93 & E94 is Indentations on working surface, which substituted by Through-holes. Theses holes will allow greater capacity to collect lubricant, which build up a lubrication film at the start of movement and reduce the frication. It is suitable for high load, lower speed application ....
READ MORE

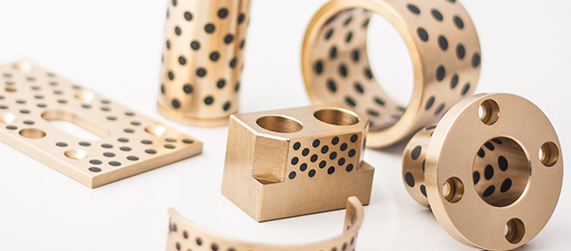

EB65 high-strength copper alloy as the base material, use conditions according to a certain proportion of its working surface machined hole and fill one solid lubricant. High-strength copper alloy provides a high load carrying capacity and the solid lubricant can be formed lower friction. Under dry conditions we design ....
READ MORE

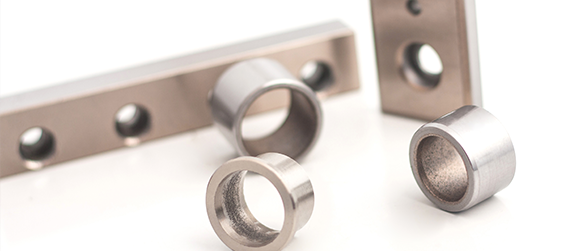

E20 is bimetallic bearing material, based on steel backing, and a layer of copper sinter, which is composed of special copper powder with solid lubricants (major ingredient is graphite) dispersed, acts as wear resistant surface and processed through oil-impregnating treatment ....
READ MORE
EU R is two-layer structure, which consists of a bronze mesh Laminated with PTFE Tape. The weight of fininal products is lighter and easy to install due to advantages of this structure. Automotive door hinges is one of typical applications ....
READ MORE
