E20 Material Characteristics
|max. P||dry||dynamic||N/mm 2||24.5|
|PV. max||dry||N/mm2. m/s||1.63|
|service temperature range||°C||-40~+400|
|Hardness||HRM||60 μ -95 μ|
E20 Brief Description
E-20 is bimetallic bearing material, based on steel backing, and a layer of copper sinter, which is composed of special copper powder with solid lubricants (major ingredient is graphite) dispersed, acts as wear resistant surface and processed through oil-impregnating treatment.
● Freedom of motions to any direction due to solid lubricant dispersed evenly, with high performance even for very small motions.
● Applicable in self-lub state.
● Outstanding load durability, velocity characteristics and wear resistance.

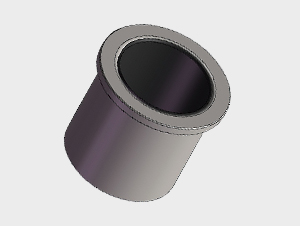

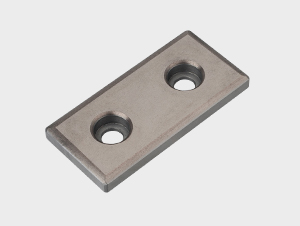

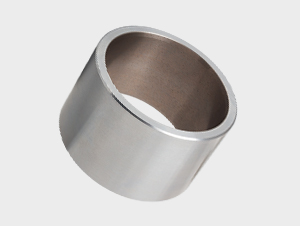

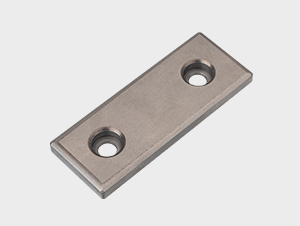

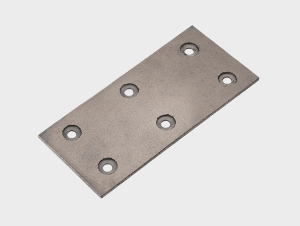

● Available of standard products with various sizes and plates for additional machining.
E20 Test Result
E20 Test datan
